Products /Trailers /CLH Trailers /Livestock Canopy Trailer
Livestock Canopy Trailer

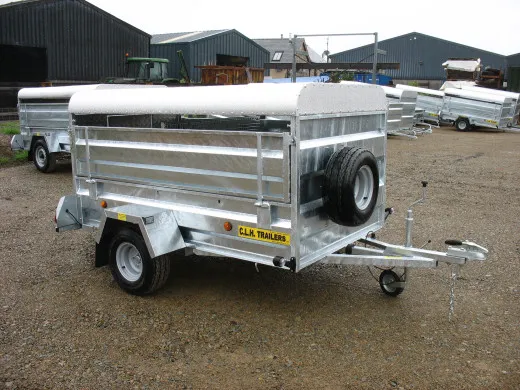

A compact, fully galvanised livestock trailer for moving sheep and a few cattle behind a 4x4 or small tractor. The single unbraked axle keeps it light and simple, and the removable roof gives stock shelter and keeps them in - handy for market trips and moving between fields.
Inside it stands 42 inches high, with drop-down or removable sides for loading and mucking out, and an internal dividing gate (on two sets of hinges) to split a load. There is a rear loading door in the tailboard, and extra gates or hinges can be added if you want to pen off differently.
Specifications
- Fully galvanised construction
- Single unbraked axle, 750 kg gross weight

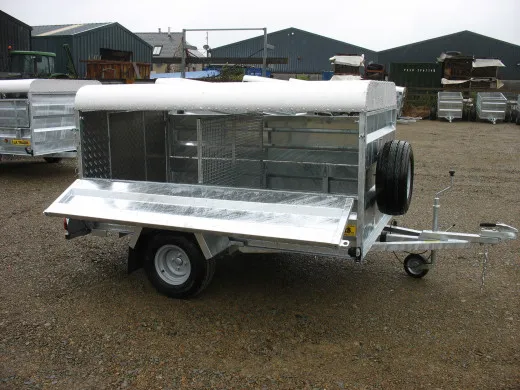

- Removable roof, 42 in high inside

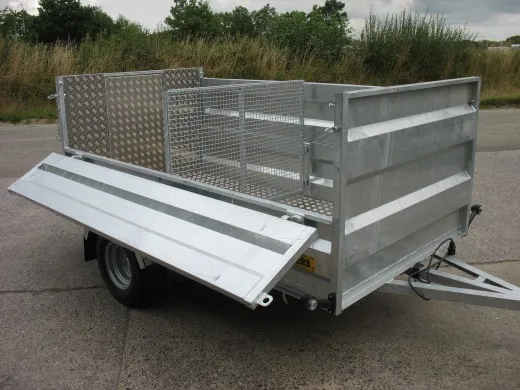

- Drop-down / removable sides
- Internal dividing gate with two sets of hinges (extra gates and hinges on request)

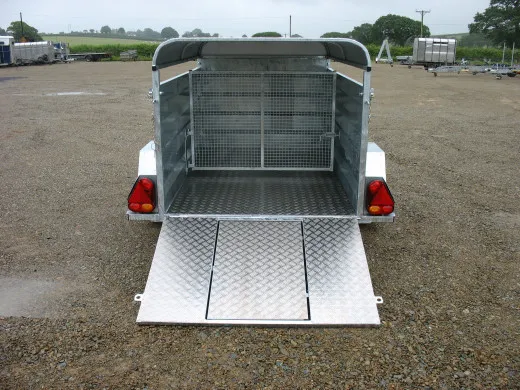

- Rear loading door in the tailboard
- Cast coupling
- 20.5 x 8 x 10 or 165 R13 wheels and tyres
Sizes
Built to order in five sizes:
- 6 ft 6 in x 49 in
- 7 ft x 49 in
- 7 ft x 4 ft 6 in
- 7 ft 6 in x 4 ft 6 in
- 8 ft x 49 in
Optional extras: loading gates, jockey wheel and spare wheel.
